Types of Gear Motors
There are two primary styles of gear motors: those with output or drive shafts that are oriented parallel or inline to the rotor shaft and those with output or drive shafts that are oriented at a 90° or right angle to the motor shaft.

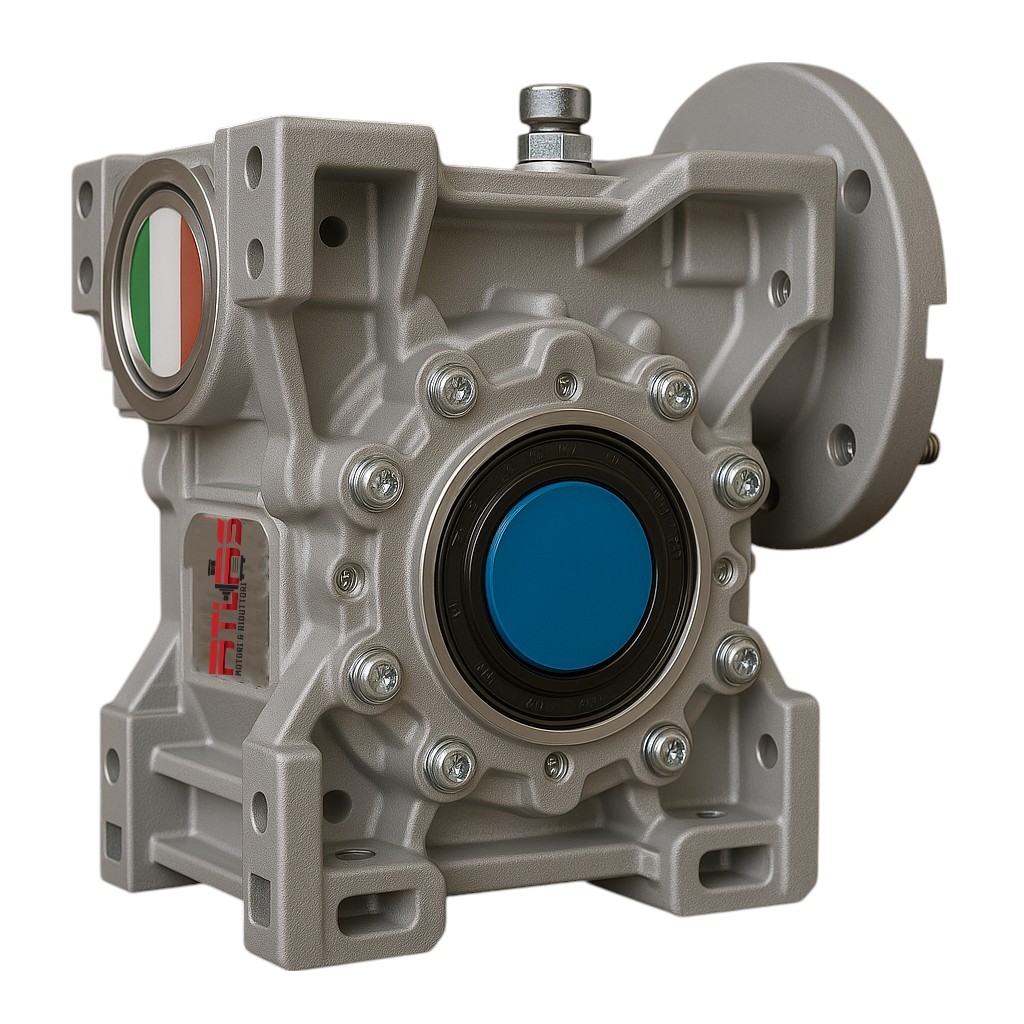

AWG Series Worm Gearbox
* Explore Atlas AWG25–AWG150 gearboxes with ratios from 5 to 5000, motor capacities up to 15KW, and torque ratings up to 1600Nm available in hollow and solid shaft configurations.
* High-performance gearboxes from Atlas: AWG25 to AWG150 models with 0.09KW–15KW motors, 14mm–50mm output shafts, and wide ratio options for industrial precision.
* Atlas gearboxes engineered for versatility featuring single/double solid or hollow shafts, torque up to 1600Nm, and reduction ratios from 5:1 to 5000:1.
* From compact AWG25 to robust AWG150, Atlas gearboxes deliver reliable power transmission with customizable shaft types and broad torque and speed ranges.

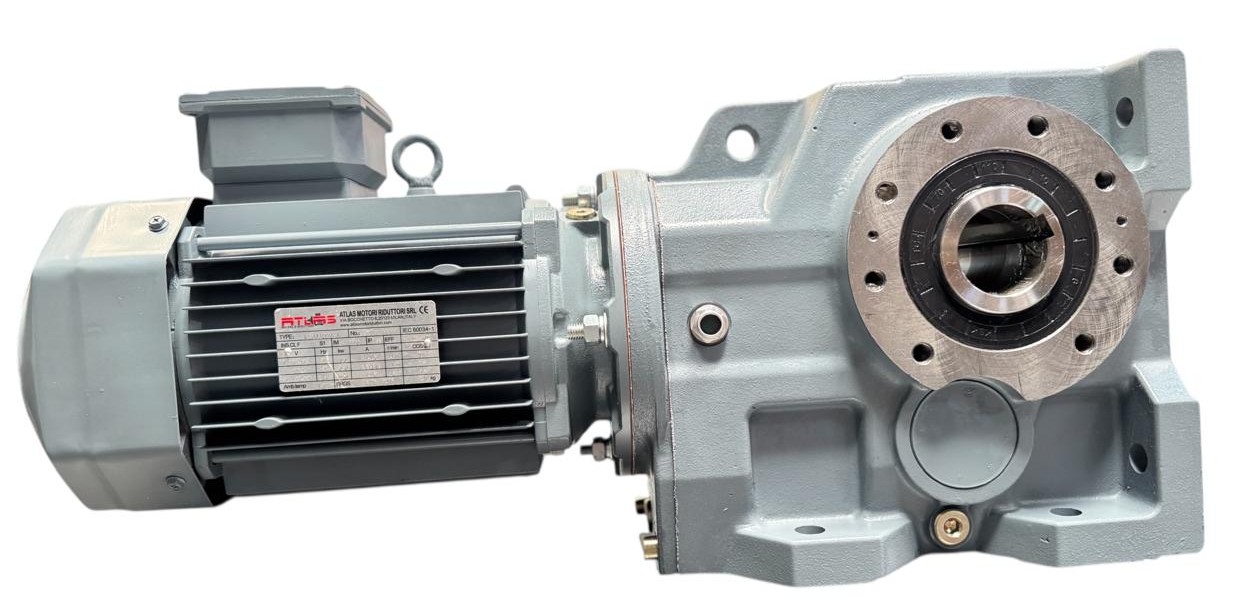

AK Series Bevel Helical Gearmotor
* Atlas AK37–AK187 gearmotors deliver up to 50,000Nm torque, 0.18–200kW motor power, and ratios from 5.36 to 192.18—built for high-load, continuous-duty applications.
* Explore Atlas helical-bevel gearmotors with 25–160mm output shafts, multiple shaft types (hollow, solid, shrink disc), and robust torque for industrial automation.
* From compact AK37 to heavy-duty AK187, Atlas gearmotors offer high efficiency, modular design, and torque up to 50,000Nm—ideal for demanding drive systems.
* Atlas AK series gearmotors feature precision gearing, wide ratio options, and flexible shaft configurations—engineered for seamless integration and long service life.

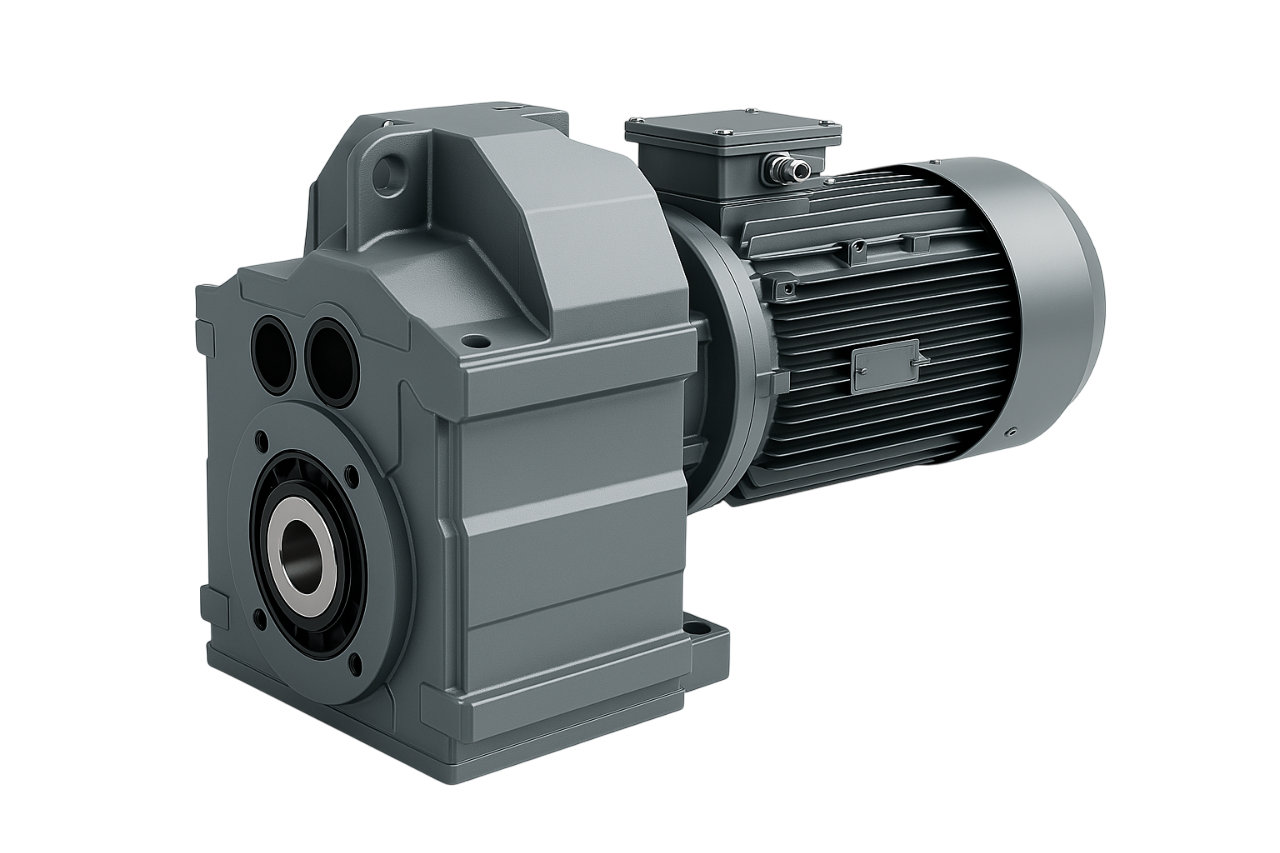

AR Series Inline Helical Gearmotor
* Atlas AR17–AR167 gearmotors deliver up to 18000Nm torque, 0.18–160kW motor power, and ratios from 3.83 to 289.74—ideal for high-demand industrial applications.
* Explore Atlas helical gearmotors with 20–120mm output shafts, wide torque range (80–18000Nm), and precision gearing for reliable power transmission.
* High-performance AR series gearmotors from Atlas: engineered for durability with customizable ratios, shaft sizes, and motor capacities up to 160kW.
* From compact AR17 to heavy-duty AR167, Atlas gearmotors offer robust torque, high efficiency, and flexible shaft configurations for industrial automation.

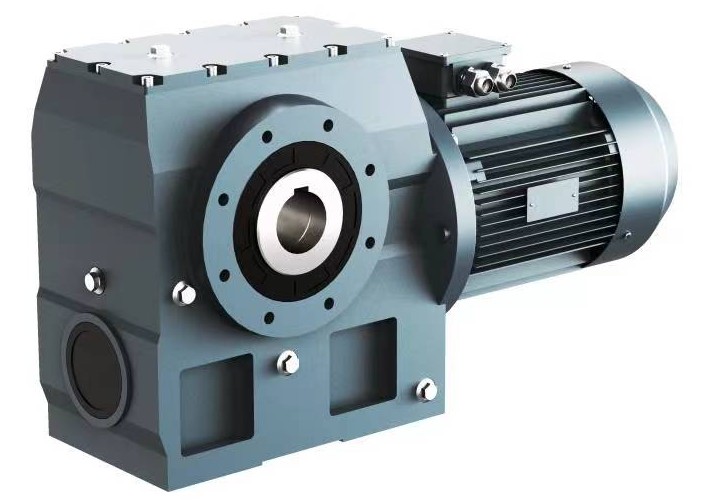

aS Series Helical-worm Gearmotor
* Atlas AS37–AS97 gearmotors deliver 90–2600Nm torque, 0.18–22kW motor capacity, and ratios from 6.8 to 288—ideal for compact, high-efficiency drive systems.
* Explore Atlas AS series gearmotors with 20–90mm output shafts, hollow or solid (single/double) configurations, and robust torque for industrial automation.
* From AS37 to AS97, Atlas gearmotors offer precision gearing, wide ratio options, and flexible shaft types—engineered for performance and durability.
* Atlas AS gearmotors combine compact design with high torque output and versatile shaft configurations—perfect for demanding mechanical applications.
AF Series Parallel Shaft Mounted Helical Gearmotor
* Atlas AF37–AF157 gearboxes deliver up to 18,000Nm torque, 0.18–200kW motor capacity, and ratios from 4.07 to 205—engineered for high-performance industrial drive systems.
* Explore Atlas parallel shaft gearboxes with 25–120mm output shafts, hollow or solid (single/double) configurations, and robust torque for demanding applications.
* From compact AF37 to powerful AF157, Atlas gearboxes offer high efficiency, wide ratio options, and flexible shaft types—ideal for automation and heavy-duty use.
* Atlas AF series gearboxes feature precision gearing, modular design, and torque up to 18,000Nm—built for seamless integration and long service life.
